Specs

A side by side view of the various colors, materials, and finishes available for the Layout Studio and Layout Studio screens offering.

Dimensions

A line drawing of a six-person Layout Studio bench with Tu Storage cubbies and credenzas and a center privacy screen.

Hive 080

6 Workstations
Workstation size: 6' x 7'
Total footprint: 14' x 18'

A line drawing of a four-person Layout Studio bench with a center privacy screen.

Jump Space 034

4 Workstations
Workstation size: Smaller than 6' x 6'
Total footprint: 12' x 12'

A line drawing of an eight-person Layout Studio standing-height bench with Tu Storage lockers at one end.

Jump Space 035

Project Table
Workstation size: Smaller than 6' x 6'
Total footprint: 13.5' x 4'

For a full listing of precise product dimensions and details, consult the price book.

Materials

Finishes

Base

Laminates

Work surfaces, screens

Woods and Veneers

Work surfaces

Textiles

Screens

Glass

Screens

Options

Layout Studio offers a number of options to customize your workstation. See a sample of these here.

Infrastructure

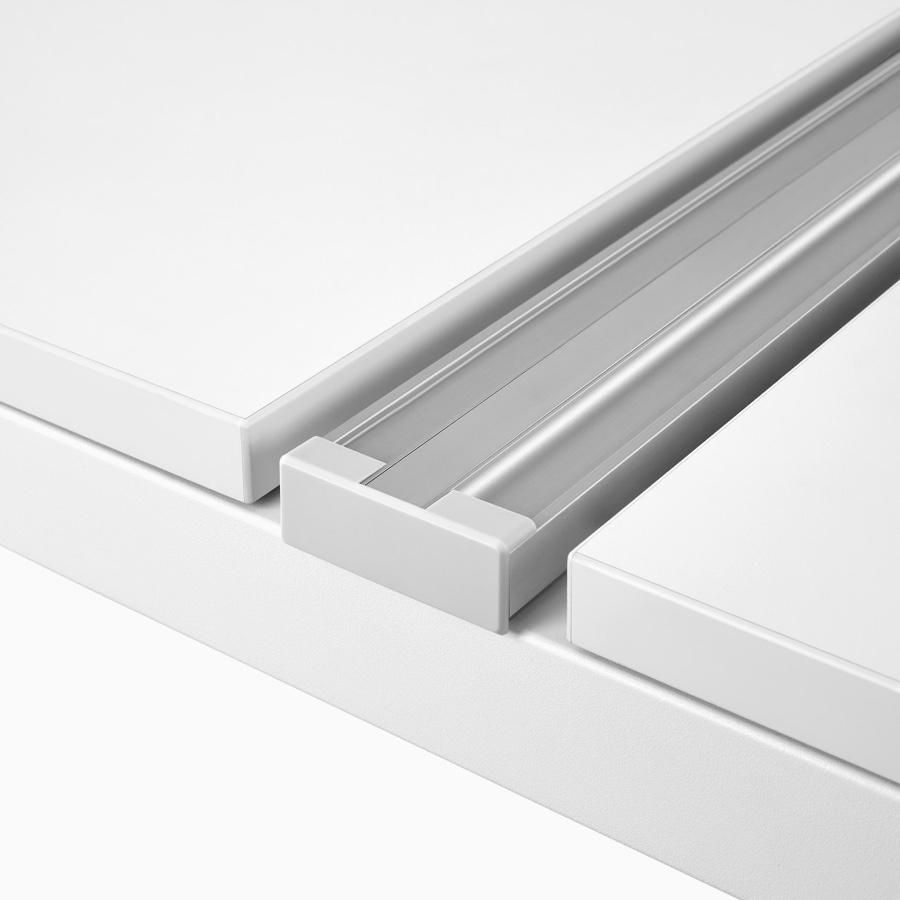

Close-up of the performance rail on a Layout Studio bench.

Performance Rail

Screens, storage, work tools, monitor arms, and lights can be mounted on the performance rail to free up work surfaces

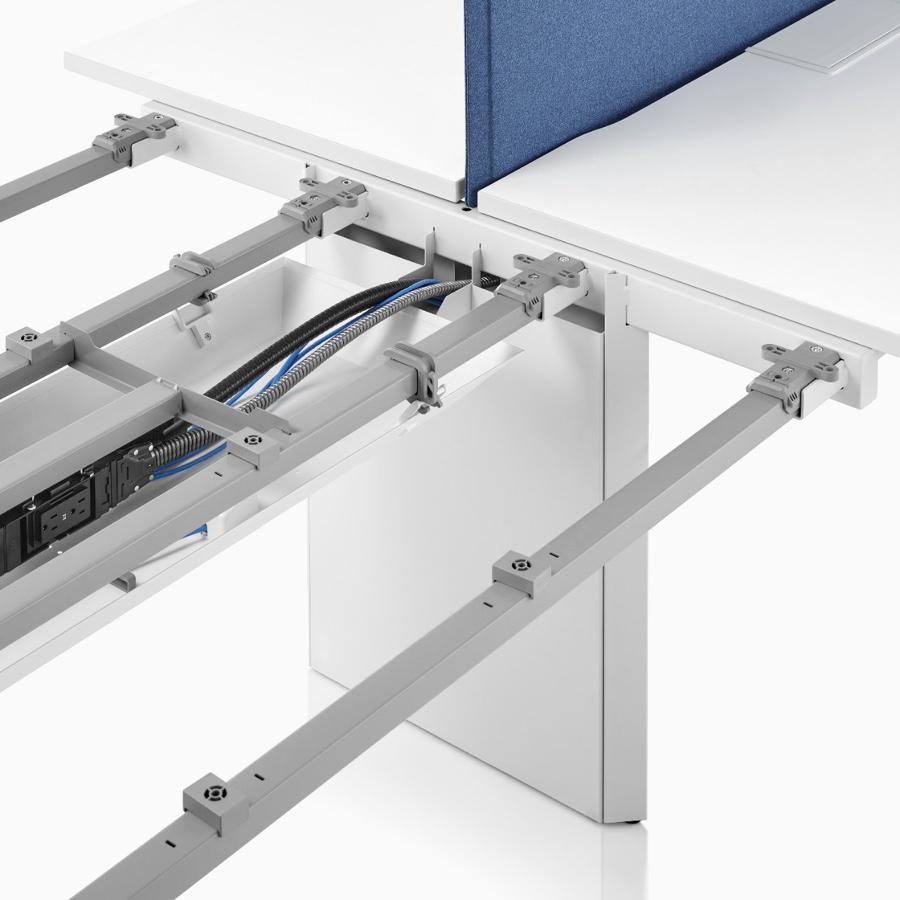

Close-up of the power and data cable management and beams found within the structure of a Layout Studio bench.

Beams

Twin beams provide attachment and support for work surfaces, cable management, screens, and other elements

Surfaces

Viewed at an angle, a single-sided Layout Studio bench with a white top, white base, and a blue, tapered-edge fabric, surface-attached screen.

Rectangular Work Surface

Can be used in a table, single-sided bench, or a back-to-back bench application

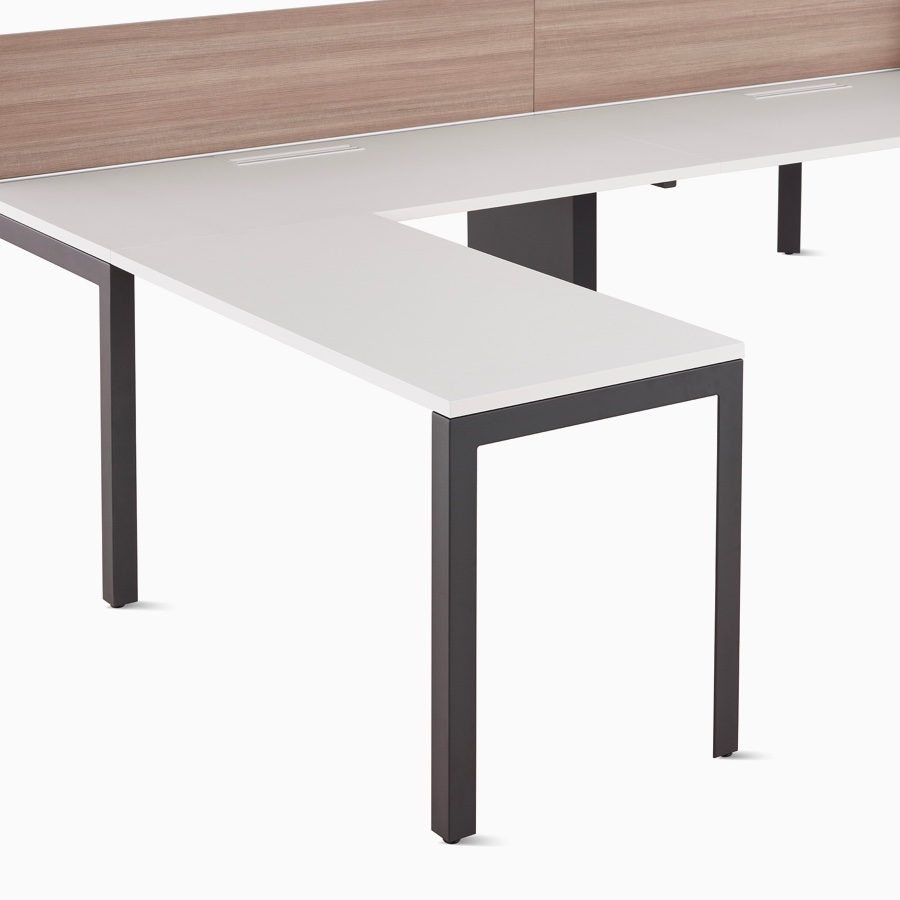

Close-up of a white top, graphite base Layout Studio benching workstation with L-shaped return-end work surface and woodgrain laminate center screen.

Return Work Surface

Connects to a rectangular work surface in single desk and back-to-back bench applications

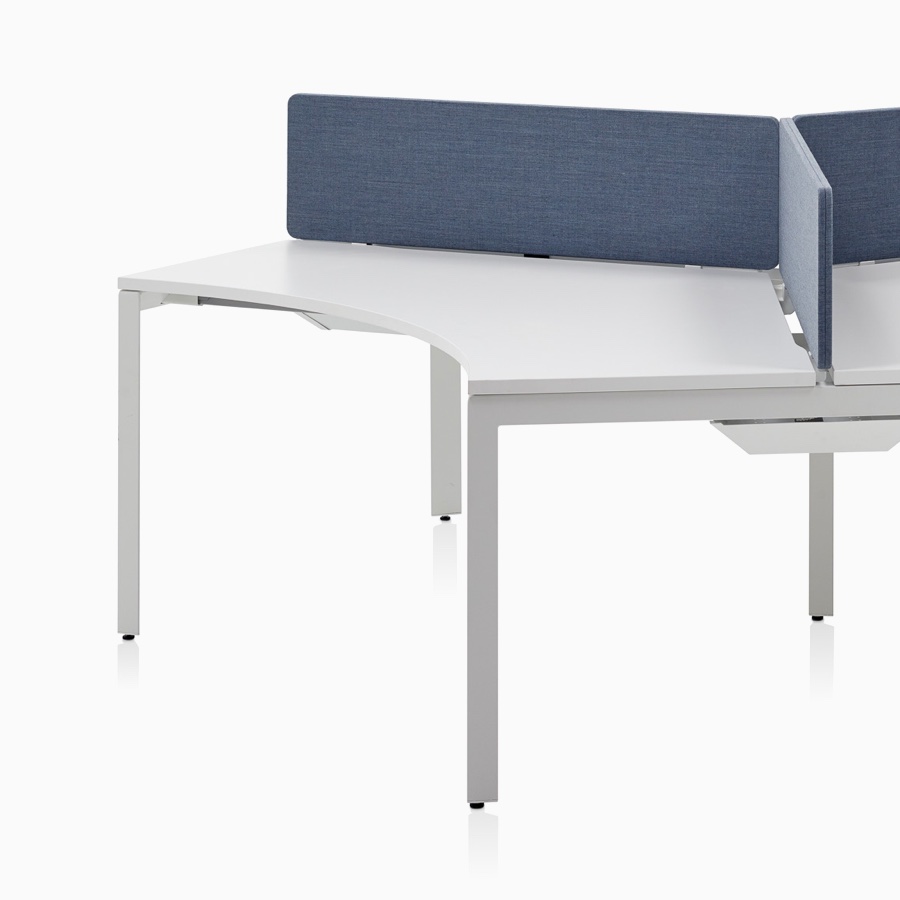

Three-person, 120-degree Layout Studio desk cluster with blue divider screen.

120° Work Surface

Offers the ability to increase workstation density with 120° applications

A Layout Studio project table with an ash woodgrain laminate top, two central power integration ports, and a graphite base, viewed at an angle.

Project Table

Freestanding table that can seat a group of people to collaborate or work individually

Supports

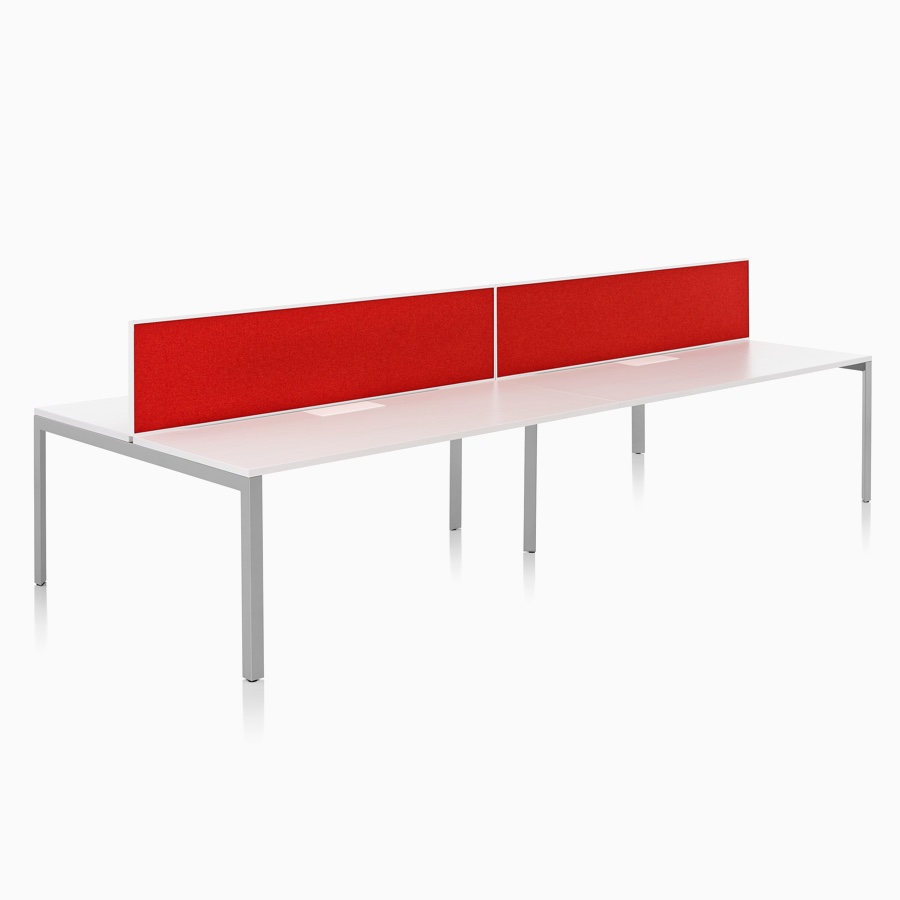

A Layout Studio bench for four with a white laminate top, gray legs, and red framed fabric center privacy screens.

Open End Leg

Provides support for a table or the end of a single-sided or double-sided bench

Close-up of a gray closed end leg and an off-white fabric center privacy screen for Layout Studio.

Closed End Leg

Provides closed support for a table or the end of a single-sided or double-sided bench

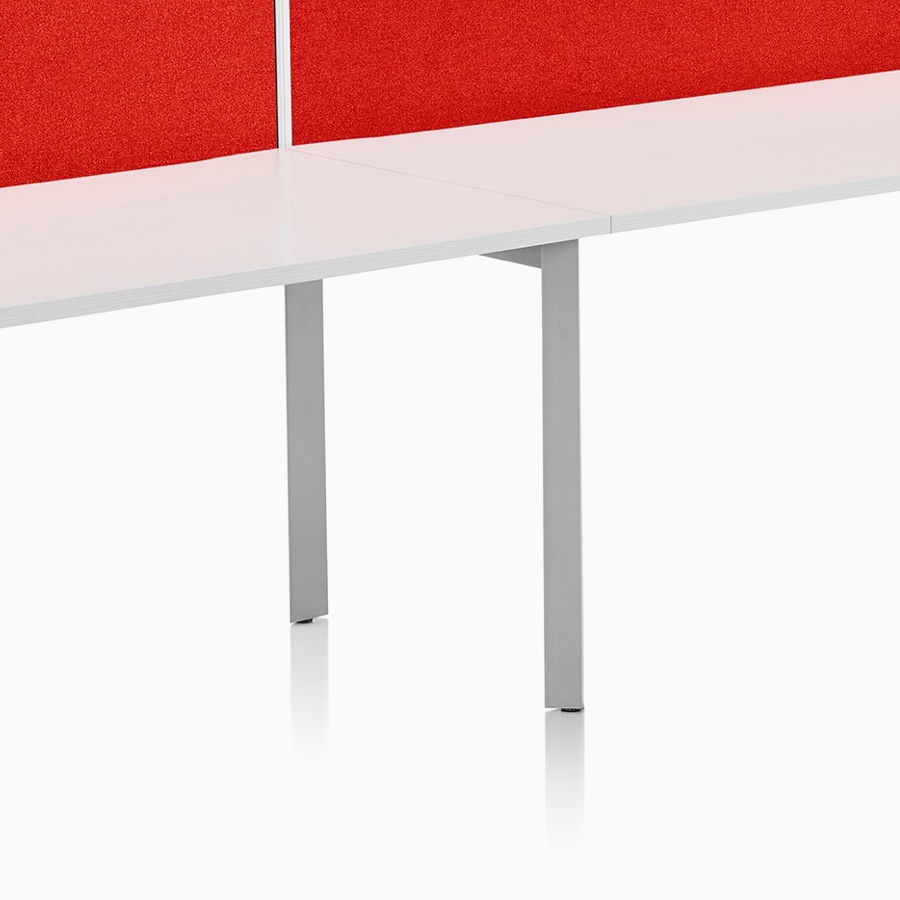

Viewed at an angle, a single-sided Layout Studio bench for two with a white top, gray base, and a red, framed fabric, surface-attached screen.

Intermediate Leg

Provides support between connected work surfaces to offer stability

Viewed at an angle, a standing height Layout Studio bench with a white top, white base, and cable management tray.

Standing Height

Offers postural variety when paired with seated height applications

Storage

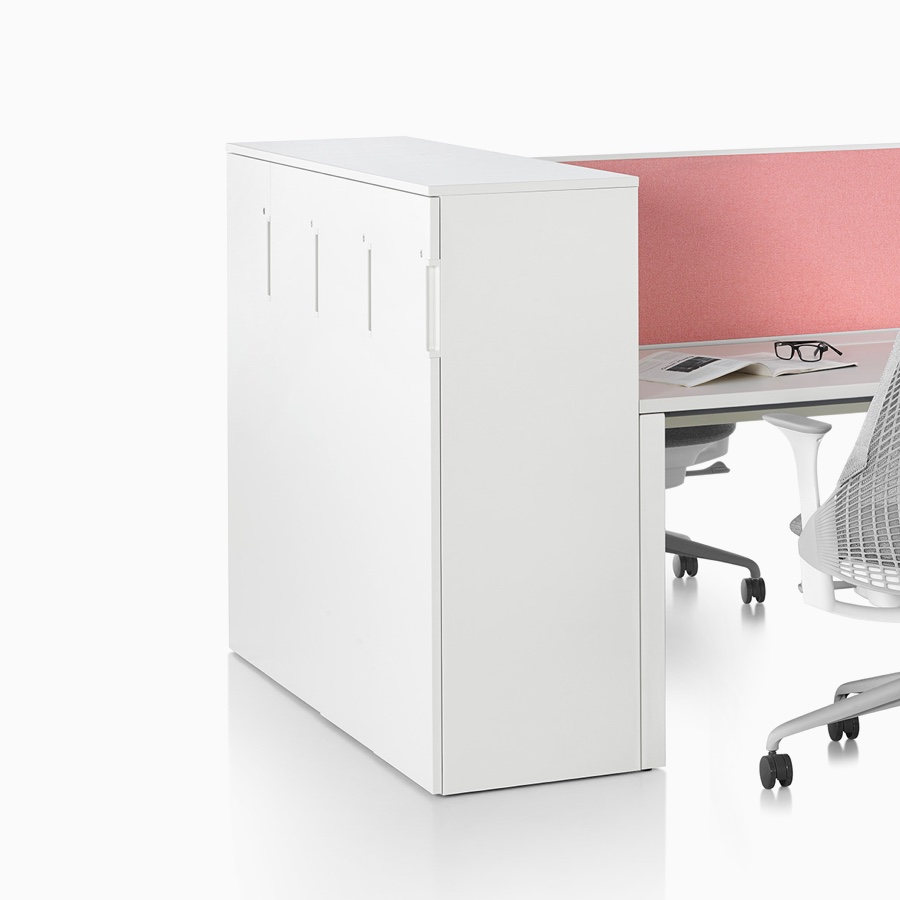

Layout Studio bench for four with white top and base, center privacy screen, Sayl Chairs, Tu Wood pedestals, and Tu Wood lockers at the end of run.

Lockers

Provides freestanding storage to a workspace or supports one end of a bench

White Tu Wood credenzas and cubbies installed on a Layout Studio bench with four Sayl Chairs and a white Tu Wood bookcase placed at the end of run.

Shared Cubby

Mounts parallel or perpendicular to the work surface and provides storage to individuals on both sides of the cubby

Layout Studio bench with a white top and base, privacy screens, four Aeron chairs, Tu Wood Pedestals, and Tu wood suspended cubby at the end of run.

Suspended Cubby

Provides storage for work tools or shared items at the end of a bench

White Ubi Work Tools with a Layout Studio bench. Ubi Organizers and Ubi Shelf are on top of the surface. Ubi Mobile Bag Catches are below the surface.

Ubi Work Tools

Users can arrange—and rearrange—an assortment of work tools to suit their personal preferences and workstyles

Boundaries

A Layout Studio bench for four with a white laminate top, gray legs, and red framed fabric center privacy screens.

Center Screen

Placed at the center of a back-to-back bench and can be installed with or without the performance rail

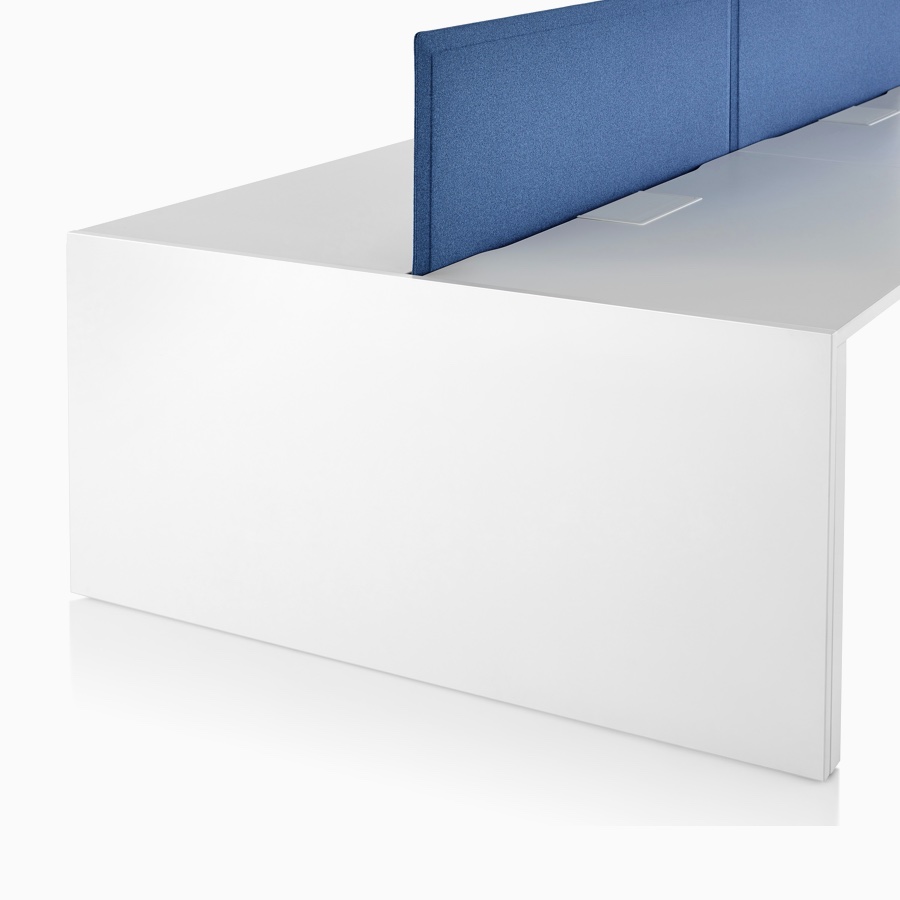

Close-up of the white laminate gallery panel at the end of run of a Layout Studio bench.

Gallery Panel

Attaches to the end of a desk to provide additional enclosure

Close-up of the framed red fabric, delineation privacy screen that's placed on top of a work surface to divide desk space.

Delineation Screen

Creates divisions at the edge of a work surface or within a larger shared work surface

Close-up of a white Ubi Slim Screen, installed on a Layout Studio work surface, that's holding a magazine and marker.

Ubi Slim Screen

Provides boundaries between people while enabling individuals to organize and display personal objects

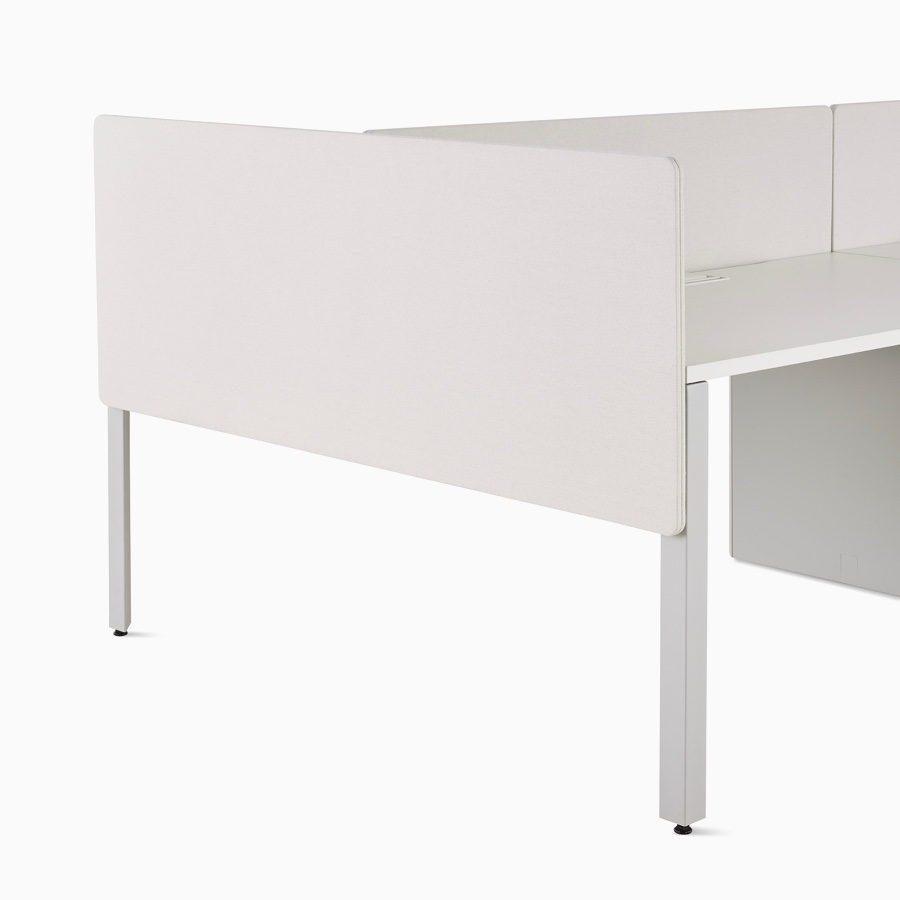

Close-up of an off-white fabric end-of-run screen and center privacy screen for Layout Studio.

End-of-Run Screen

Placed at the end of a row of workstations and parallel to the work surface

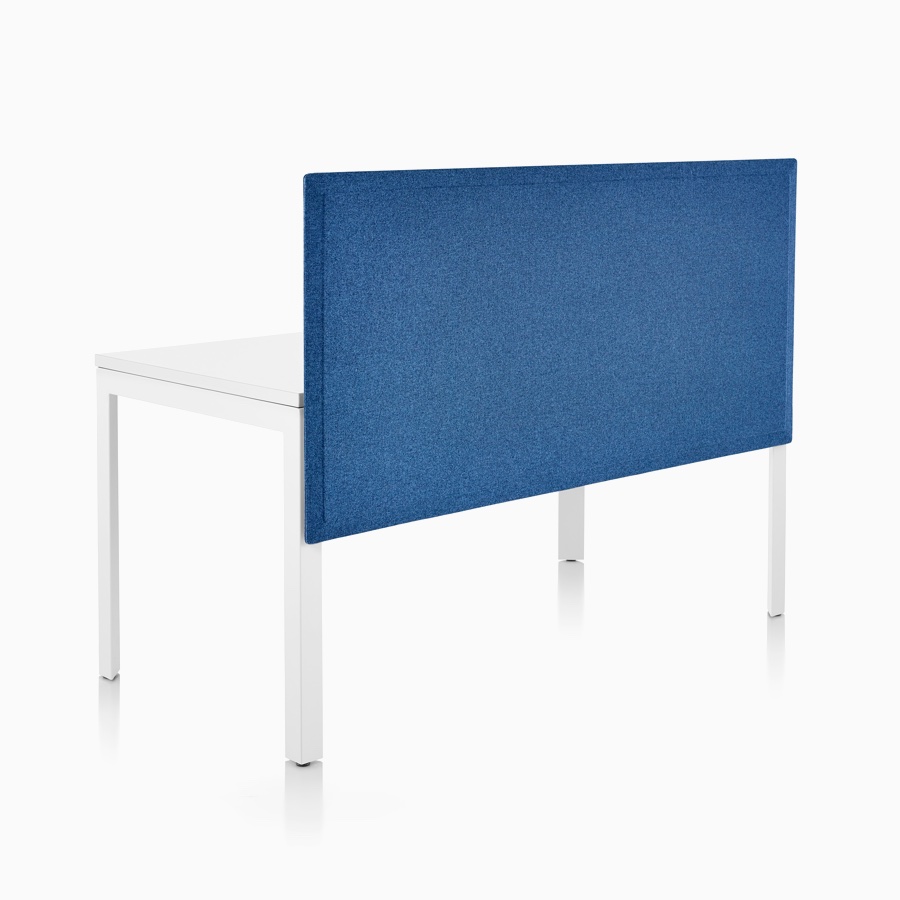

Viewed at an angle, the front side of a blue tapered-edge fabric, surface-attached privacy screen attached to a single-sided Layout Studio bench.

Modesty Screen

Provides boundary above and below or below a work surface

Accessories

Close-up of a Tone Personal Light attached to the performance rail on a Layout Studio workstation.

Task Lighting

Provides lighting to a work point and can be installed on the performance rail or on the back of a work surface

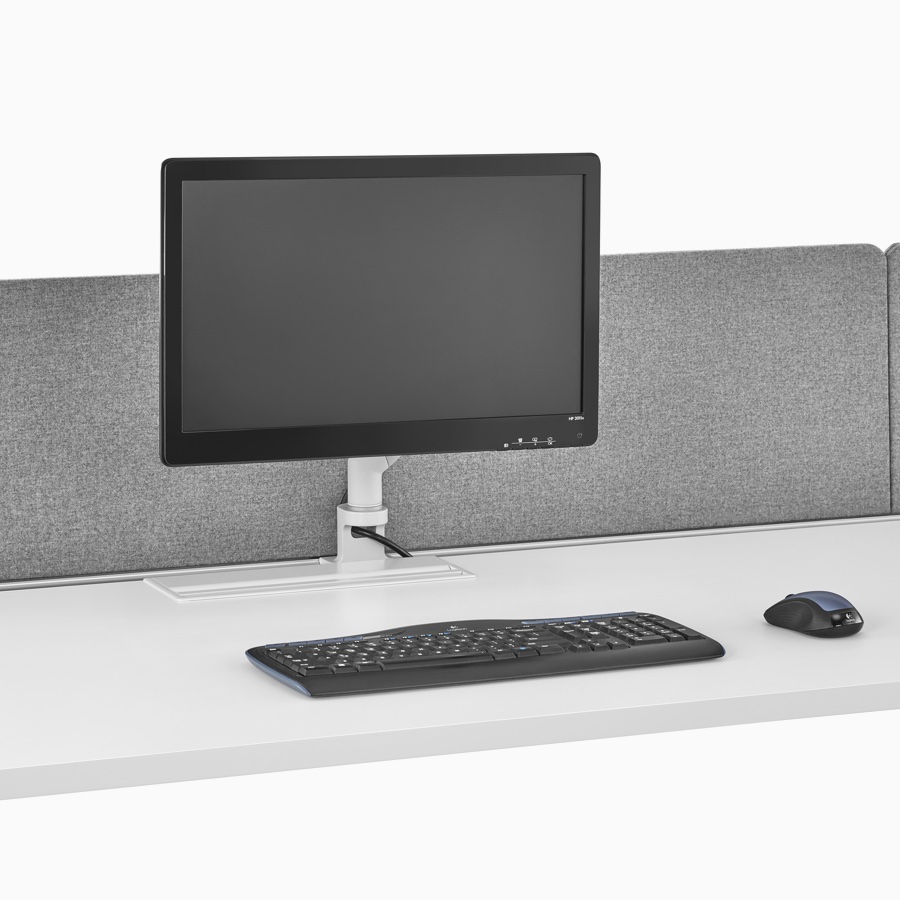

Close-up of a Layout Studio workstation with a white top, gray flat edge fabric, center privacy screen, a monitor, keyboard, and mouse on the surface.

Monitor Arms

Allows people to adjust monitor to the right height, distance, and angle for their vision

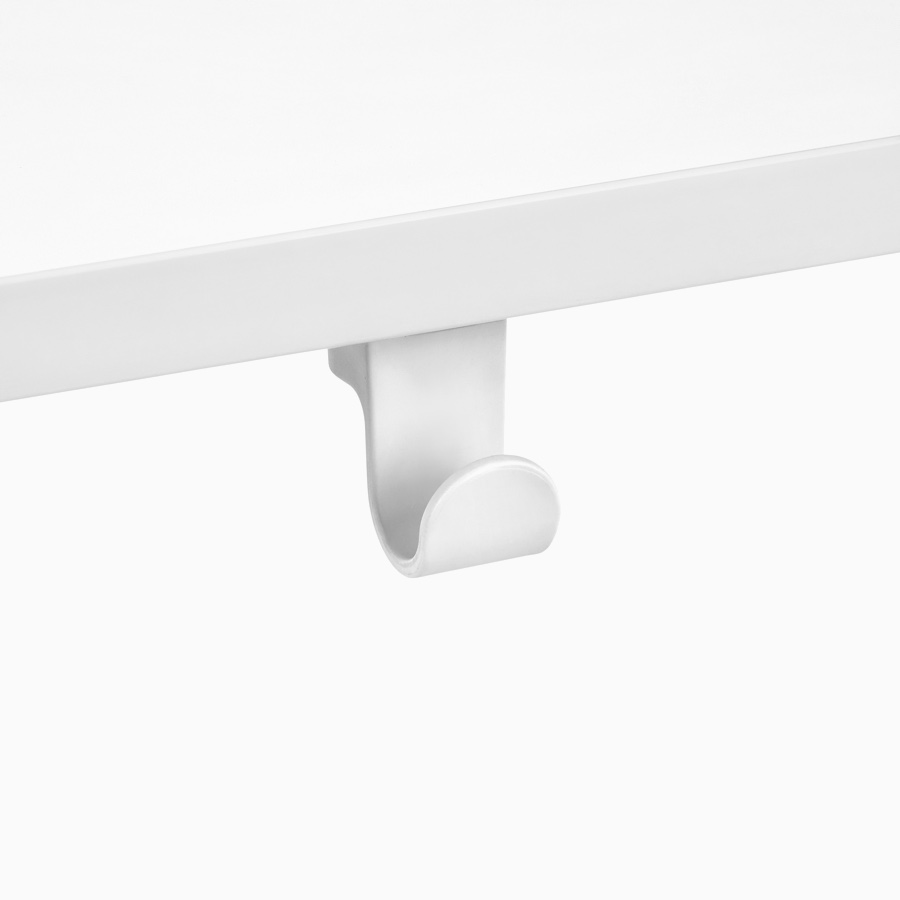

Close-up of a white, Ubi Work Tool, Bag Hook attached to the underside of a white work surface.

Ubi Bag Hook

Clamps to the work surface or attaches to the underside of a work surface to hold bags

Close-up of a white, Ubi Work Tool, Attached Shelf installed on the performance rail of a Layout Studio bench.

Ubi Attached Shelves

Mounts to the performance rail and to the back edge of a work surface to provide additional storage space

Power and Data

Close-up of the data module found within the structure of a Layout Studio bench.

Data Module

Mounts to the underside of a performance rail or cable management to support face plates with voice/data ports

Close-up of a graphite floor power entry of a Layout Studio benching workstation with center screens.

Floor Power Entry Cover

Conceals a floor power entry and cables from the floor to the cable management tray

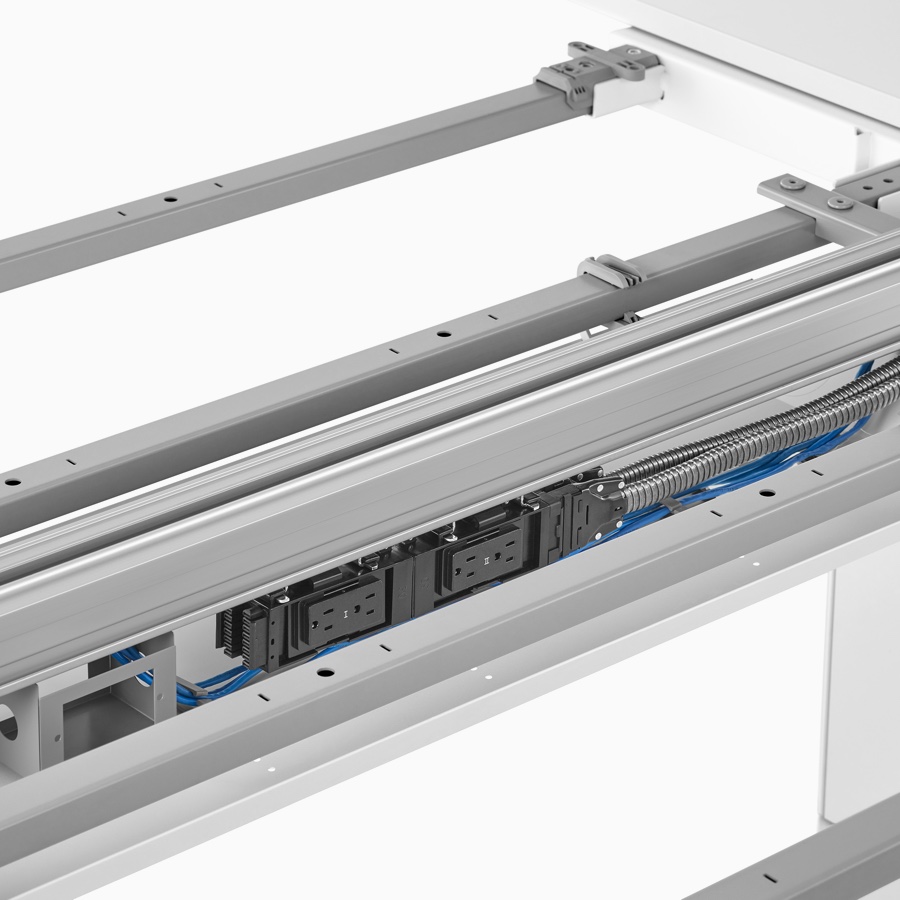

Close-up of the interior of a Layout Studio bench cable management tray found beneath the structure.

Cable Management Tray

Holds and conceals power and data cables

Close-up of the white umbilical riser that's attached underneath a Layout Studio bench and connected to the floor.

Umbilical Riser

Conceals and routes power and data from the surface to the floor

Power and Data

Power and data can be accessed directly in Layout Studio, from the floor through the cable management tray, and up to the work surface.

A line drawing showing how power and data is routed and access in Layout Studio bench.

1. Power and data enters the bench through the floor using an umbilical riser or intermediate leg.

2. Power routes through the cable management tray and connects the entire bench.

3. Power and data are accessed through cutouts in the work surface.
